Introduction of UV-C LED Water Disinfection Unit

Ensuring water safety and security through advanced UV-C purification.

UV-C LED Water Disinfection Unit（GT909-0809）

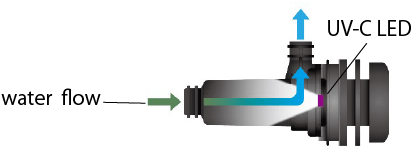

	Features ・Equipped with the latest UV-C LEDs, our unit achieves a high inactivation rate of 99.999% for E. coli in a single pass. ・Compact and Lightweight design, achieved by optimizing LED performance. ・No water cooling required; efficient heat dissipation enables dry-run operation.
	Applications ・Sanitation Equipment/Drink Dispenser

• Product Catalog
• Inactivation test
• Technical Review

UV-C LED Water Disinfection Unit（GT909-0807）

	Features ・Wide Temp. durability (Operating water temp. 0~60℃ ) ・Flow rate : 8~10L/min. ・12V power input
	Applications ・Sanitation equipment/Residential water systems

Product Catalog

	GT909-0809	GT909-0807
Flow rate	0.5~2L/min.	8~10L/min.
Inactivation rate@E.coli	>99.999%@0.5L/min. >99.999%@1.0L/min. >99.999%@2.0L/min.	>85%@8.0L/min.
Power consumption	3W	6.5W
Size	Φ41×120mm	Φ68.4×100mm
Weight	125g	270g
Operating water temperature	5～40℃	0~60℃
Applications	Sanitation equipment/ Drink Dispenser	Sanitation equipment/ Residential water systems

We are also happy to support your needs. Please feel free to contact us.
