Toyoda Gosei's High power UV-C LED
Toyoda Gosei Develops UV-C LED with World-Class Light Output
We succcessfully developed 275nm UV-C LEDs that achieve light output at the level of 200 mW with a single chip driven by a current of 350mA.
Improvement of the LED structure and composition quadrupled the amount of light that can be extracted.
Enhanced LED performance including disinfecting capability of about three times
higher will expand their applicable areas including a future alternative to mercury lamps,
contributing to more hygienic and safer living. * As of March 31, 2024. Toyoda Gosei survey

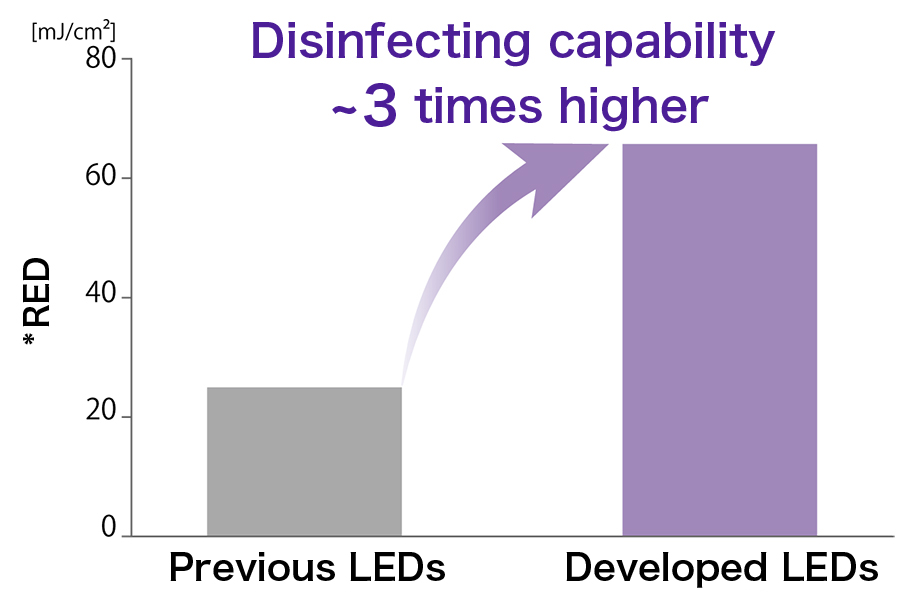

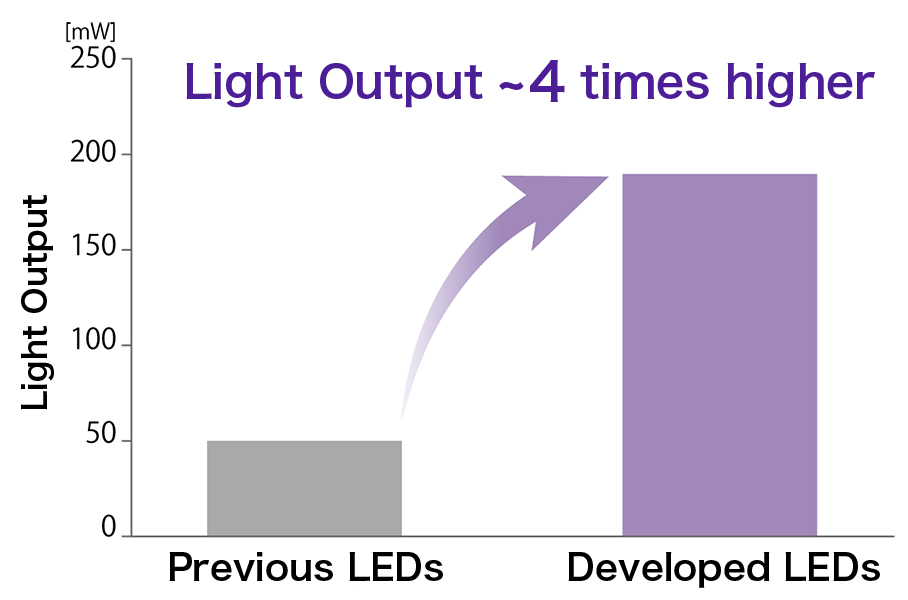

［Comparison to our previous LEDs］
* Reduction Equivalent UV Dose is an indicator of disinfection performance
［Features］
- ✓275nm UV-C LEDs that achieve high light output at the level of 200mW with a single chip driven by a current of 350mA.
- ✓L70; Long life of 15,000 hours.*
- ✓Two line-ups of wide and narrow light distribution can be used to wider range of application.
- ✓Small size of 3.9mm x 3.9mm
- *At room temperature and driven by a current of 350 mA.
Wide light distribution
Narrow light distribution
［Typical Specification］
| Items | Standard Value | |
|---|---|---|
| Wide light distribution | Narrow light distribution | |
| Size | 3.9mm x 3.9mm | |
| Peak Wavelength | Typ. 275nm | |
| Forward Current (IF) | 350mA | |
| Forward Voltage (VF) | 5~7V | |
| Light Output | 200mW | 190mW |
| Viewing Angle | 90° | 47° |
