UV-C Space Disinfector

TG009-CA00A

User's Manual

"Experience the technology
of Toyoda Gosei,
right alongside clean air."

In these times, we have taken a serious look at 'peace of mind'.

Equipped with 'UV-C LED'
that eliminates viruses and bacteria
with light.

Protecting your lifestyle amidst the uncertainties
of the New Normal era.

Experience peace of mind in a safe and secure environment.

Experience peace of mind
in a safe and secure environment.

Worried about bringing bacteria and viruses into your home?

Worried about bringing bacteria and viruses
into your home?

Ensuring peace of mind for everyone in the family, from pets to children.

Ensuring peace of mind for everyone in the family,
from pets to children.

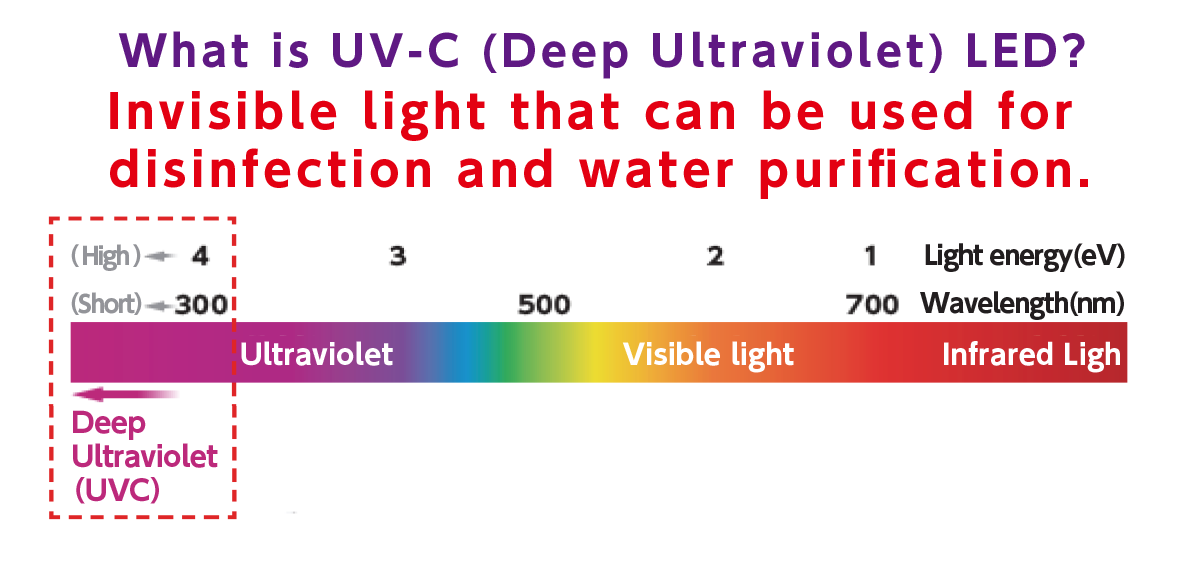

What is UV-C LED, a disinfection technology using light?

The 'UV-C LED' is an LED that emits 'deep ultraviolet' light, characterized by its short wavelength (high energy).

Deep Ultraviolet…

The deep ultraviolet rays from the sun are almost
entirely absorbed by the ozone layer in the atmosphere, and do not reach the earth's surface.
Deep ultraviolet rays have the ability to destroy genetic information, making them effective in eliminating viruses and bacteria.

Creating a safe and secure environment.

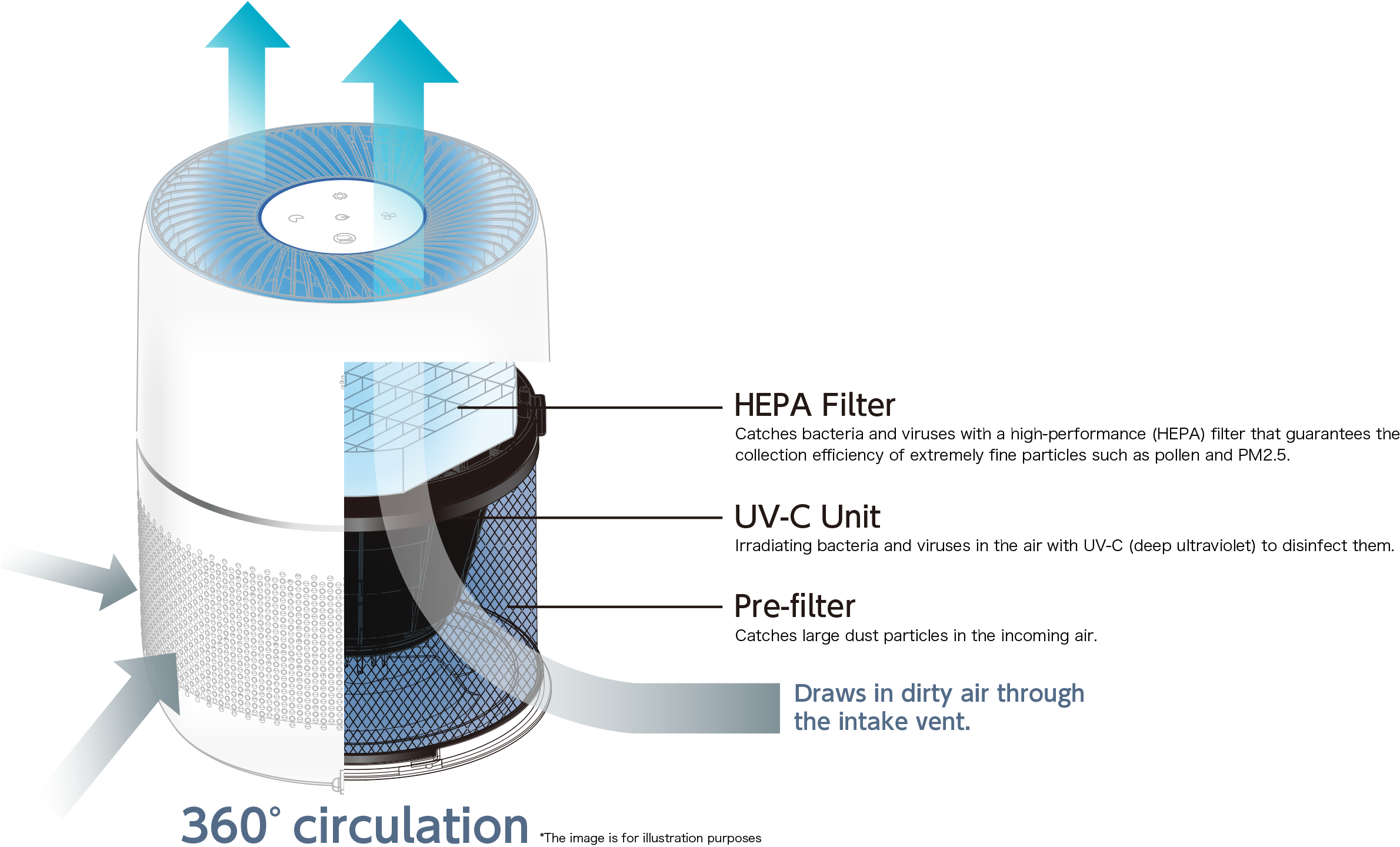

Catches bacteria and viruses with a HEPA filter and eliminates them with UV-C (deep ultraviolet).

Creating a comfortable environment for the whole family.

Conveniently sized for easy portability.

A powerhouse for
disinfection spaces.

Product Specifications

← Please scroll horizontally to see →

	Modes
	Low	Mid	High	Sleep
Product Size	φ225×H310mm
Rated Voltage	AC100V
Tatami Mat Coverage	Covers 8 Tatami Mats(Approx. 13㎡ )/Approx. 32㎥
Airflow	0.27㎥/min	0.58㎥/min	0.88㎥/min	0.27㎥/min
Noise Level	38dB(A)	52dB(A)	56dB(A)	38dB(A)
Circulation Frequency _*1	0.51/h	1.09/h	1.65/h	0.51/h
Virus Removal Time	50~350 sec _*2

_*1：Covers 8 tatami mats - Number of air circulations per hour.
_*2：The time it takes to disinfect viruses attached to the HEPA filter by irradiating them with UVC.
